State of the Art Performance

The Hypex Ncore® NC1200 class-D power module represents the state-of-the-art for audiophile performance, with unparalleled clarity, musicality and resolution. It features the industry’s lowest distortion and noise specifications, and its performance is frequency-independent. You’ll find it in the finest audiophile monoblocks, and that’s why we use it in the Amplitude8.

The audio performance of the Amplitude8 satisfies the most demanding audiophiles, and when watching movies, you’ll find its silent background noise and enormous dynamic range ensures you’ll hear every detail in the quietest passages and clean, undistorted output and impact when the soundtrack is at its highest loudness levels.

Feel the Power

Think of this 8-channel class-D power amplifier as two high-output four-channel amplifiers on a single chassis, each with its own power supply.

Each linear power supply is built around a separate heavy-duty toroidal power transformer, enabling every module of the Amplitude8 to deliver 225W into 8 ohms, 375W into 4 ohms and 500W into 2 ohms.

In fact, the Amplitude8 requires two AC power connections.

Perfect integration

Trinnov perfectly matched the input level of the Amplitude8 to the output level of the Altitude 32, optimizing the system’s dynamic range. By doing this, we are able to decrease the background noise of the system by a highly significant six to eight dB, a benefit unavailable when using other amplifiers.

Why is this so important? Immersive audio systems have a large number of speakers, and each is a potential source of background noise, especially when the system has high-sensitivity speakers. A silent background ensures that low-level sounds critical to a soundtrack will not be obscured.

Magnificent Impression

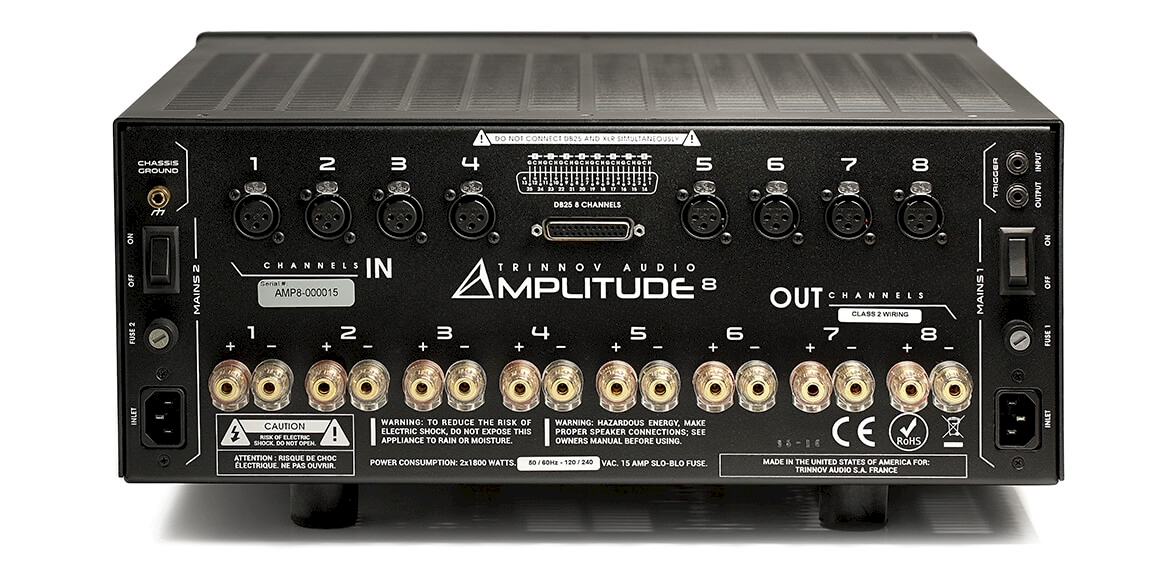

The physical integration of the Amplitude8 and your Altitude processor has also been taken into account. You can take the conventional approach with eight independent XLR input cables, or elegantly simplify your rack installation with a single D-Sub cable that handles all eight channels.

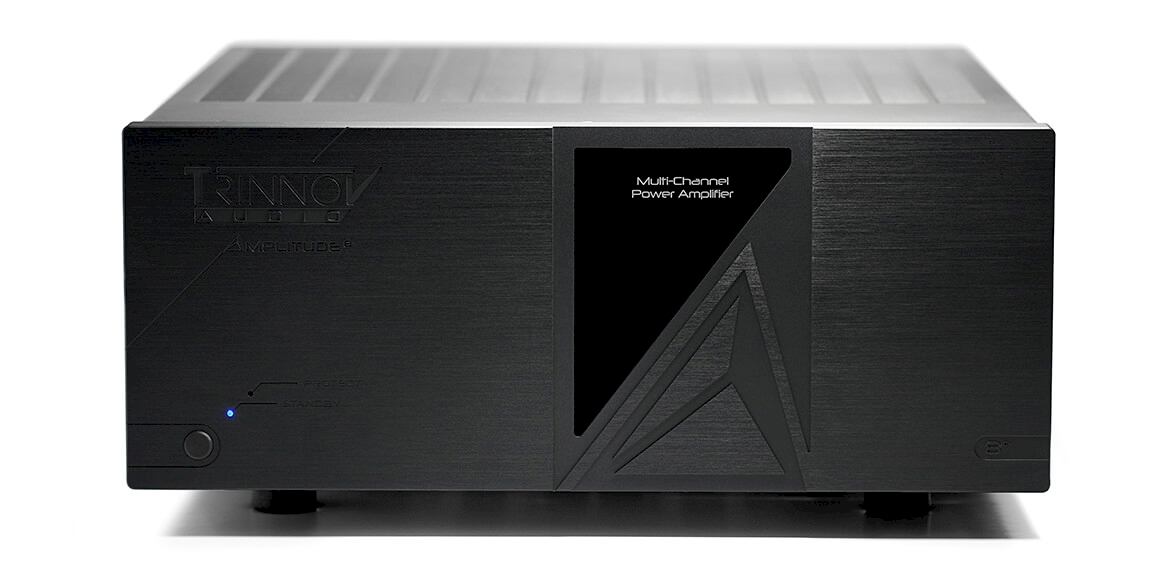

Convection cooled, the Amplitude8 operates silently, without internal fans, making it ideal for use when the equipment rack is located inside the theatre. Once installed, the Amplitude8 front panel complements the look of the Altitude32, creating a  magnificent impression in your home theatre rack.

The Cinema Designer

The Cinema Designer (TCD) is a powerful online design tool that allows integrators and system designers to create not only technically impeccable cinema designs in a matter of minutes, but also a complete set of support documents and aesthetic room renderings.

Trinnov Altitude processors and Amplitude amplifiers are fully supported in the TCD software, enabling designers to integrate these products into the most complex speaker layouts in a matter of minutes.
