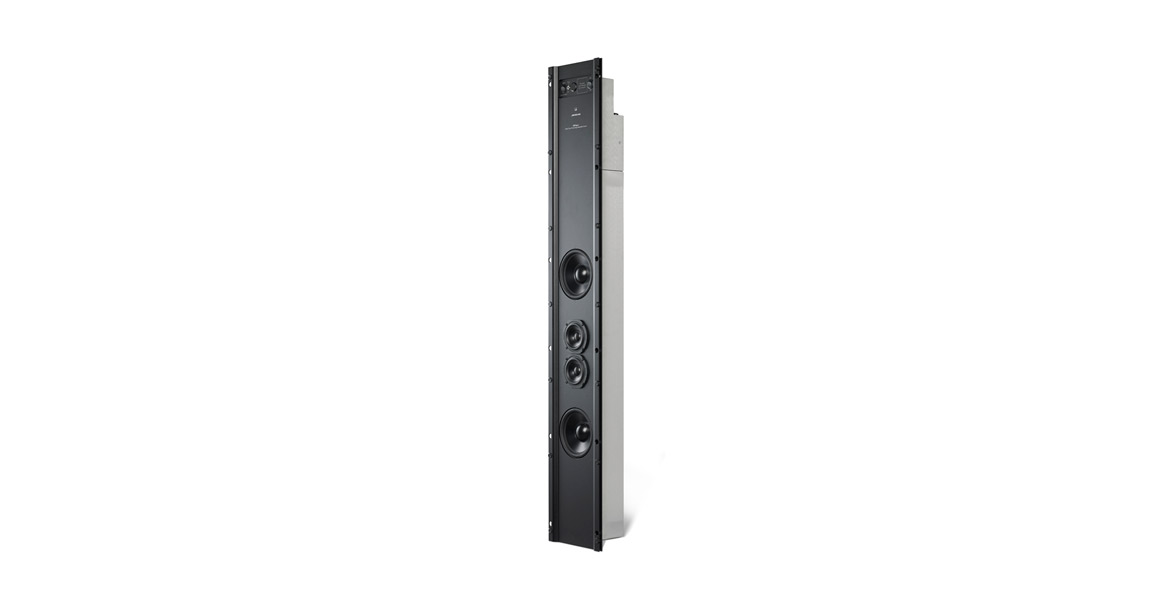

DSP640.2
DSP640.2
DISCREET, UNOBTRUSIVE PERFORMANCE
Powered by Meridian’s exclusive ‘CLASS-M’ DSP engine and integrated with ‘DYNAMIC’ Hi-Res amplifiers, the DSP640.2 is perfect for delivering Meridian’s renowned audio quality discreetly in any living or cinema room.
With a range of Meridian enhancement technologies on-board the DSP640.2 offers great flexibility and the best possible performance from any source. Featuring high SPL and strong bass performance, it delivers full range sound with no requirement for an additional subwoofer.
With a host of exclusive Meridian technologies on-board, the DSP750 resets the standard of architectural loudspeaker performance.
AUDIO INPUTS
Meridian SpeakerLink connector (RJ45)
AUDIO OUTPUTS
Meridian SpeakerLink connector (RJ45)
PERFORMANCE
Peak SPL: 1m - 117dB
Bass extension: 35Hz
AMPLIFIERS
Wide-range drivers (each): 2 x Class-D amplifiers bridged for 100W into 8 Ohms
Bass drivers (each): 2 x Class-D amplifiers bridged for 100W into 8 Ohms
BASS DRIVERS
2 x 140mm long-throw design
WIDE-RANGE DRIVERS
2 x 85mm with neodymium magnets
FRONT PANEL CONTROLS
On/off rocker switch, Fuse holder, IR window
Rocker switch selects “Right”, “L + R”, “Left or Centre”
RS232 socket – 3.5mm minijack (long version – 18.6mm)
LED indicators show power status and configuration settings
DISPLAY
LED indicators to show power status and configuration settings
POWER
IEC mains cable included with loudspeaker for connection to rough-in box
DIMENSIONS / WEIGHT
HEIGHT: 1230mm [48.5in] (Excludes frame and cable feed channel)
WIDTH: 203mm [8in]
DEPTH: 102mm [4in]
WEIGHT: 15 kg [33 lbs]
