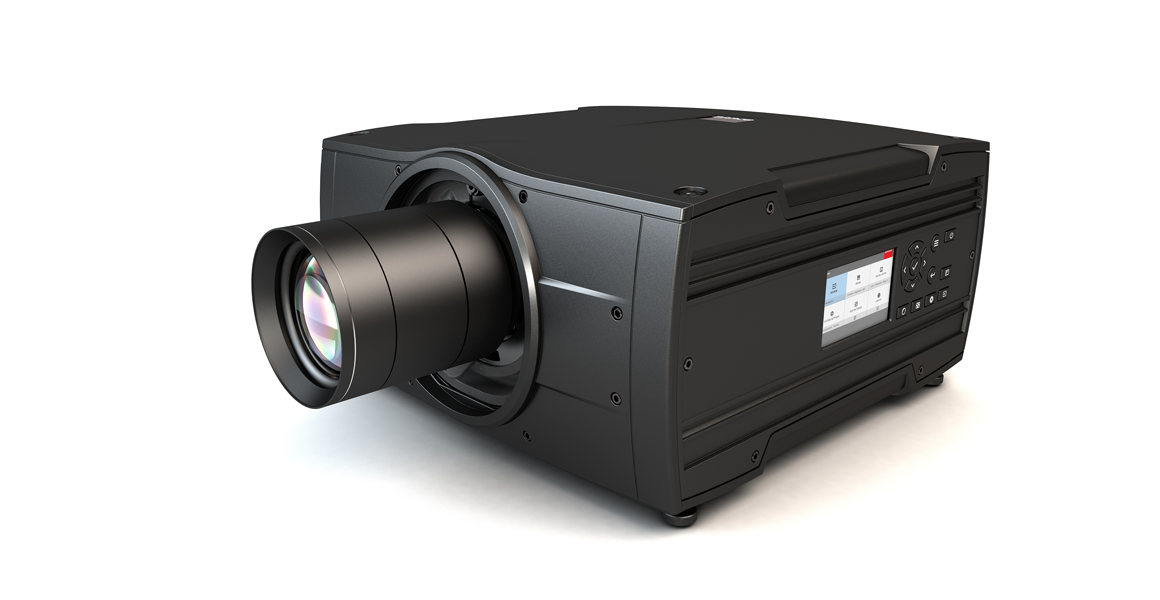

Bragi inherits most of it's technology from Bragi CS, optical core and lenses, the main difference is the aspect ratio, Bragi is 16:9. Bragi will have the same PULSE electronic and SW platform powered by a revolutionizing new LED engine.

Bragi produces a stunning, wide and extremely consistent color gamut and a rich, vibrant color rendition. A bright, up to 2600 lumens image. Low noise, with up to 50 000 hour life expectancy, 9 lens options and close to unlimited installation flexibility. Bragi delivers the ultimate and by far the best in image quality for smaller dedicated home cinema rooms we have ever seen, built or experienced before. In short, it is the best picture quality ever shown at this level.

Bragi is not just another projector, Bragi is using a new optical engine where we have taken the best from previous models combined with new technology to create an even better optical engine than ever before. The optical engine is using custom designed aspherical glass elements and enhanced low dispersion glass lenses inside the engine, combine that with 9 lens options and you have an image quality in a class of its own.

The optical engine is not the only part that is redesigned, the light source is brand new as well, and this time it’s not laser. The light source is using the latest in HLD and LED illumination technology.

HLD LED is unique in that it works around the ‘law of etendue’ (property of light in an optical system, which characterizes how "spread out" the light is in area and angle...) to deliver a superb colour experience and incredible brightness while enabling new levels of resolution. HLD LED combined with regular LED colours are more saturated, our eyes are tricked to interpret this as richer and brighter colours than they are physically measured. Bragi also has a motorized DCI/P3 filter for improved HDR performance, meaning that the projector will support both SDR and HDR viewing.

The Bragi Cinemascope is built on the proprietary Barco Pulse software platform. The powerful and flexible architecture of Barco Pulse allows for easy installation, no scaling artefacts and full freedom in architectural integration. “Pulse” electronics have been designed to process 4K with HDMI 2.0a and HDCP 2.2 and the optical engine is utilising the very latest 0,9-inch DMD DLP chipset, delivering 5120 x 2,160 pixels on screen. Bragi also features HDR, motorised lenses and auto aspect detection between 16:9 and CinemaScope. Featuring Barco’s unique RealColor processing, Bragi enables simple and accurate calibration to any desired white point or greyscale.

Pulse offer a unique web interface called Prospector. Prospector is a lot more than a basic user interface. It offers a full overview of all the features you find inside the projector. It offers monitor options as well as setup options. You can easily do a full installation of the projector from any computer/pad or phone with touch control and Wi-Fi access. Prospector uses a modern true bidirectional communication protocol called JSON-RPC 2.0.

Projector type: Single chip UHD (4K DMD)

Resolution: 3,840 x 2,160 px @60hz

Aspect ratio: 2.37:1 (CinemaScope)

Light output: T-version: up to 2,600 lumens

Lens range:

0.30 : 1 (EN68)
0.41 : 1 (UST 90 degree lens)
0.65 : 1 (EN67)
0.80 - 1.21 : 1 (EN66)
0.90 - 1.30 : 1 (EN76)
1.21 - 1.70 : 1 (EN63)
1.70 - 2.50 : 1 (EN61)
2.50 - 4.60 : 1 (EN44)
6.50 - 9.10 : 1 (EN69)

Optical lens shift:

Varies depending on lens, more than 70% with EN61 & EN63

Colour correction: P7 RealColor™

Colour gamut:

DCI (P3) via internal filter
REC.709

Image processing: Embedded warp, bow correction & blend engine

WARP: Four corner warp

Orientation: 360° rotation, no restrictions

Network connection: 10/100 Ethernet via RJ45 connection

Integrated web server: Yes

HDR: HDR10

3D:

Active stereoscopic 3D* (requires firmware release 1.5 onwards) Additional hardware required please contact an authorized Barco representative for details

Inputs:

HDMI 2.0, HDBaseT (1.4), DVI, DisplayPort, SDI, DMX

Control:

TCP/IP, RS232, IR, Keypad, 12v Trigger

* Firmware upgradable

Power requirements: 100 -240V / 50 -60Hz

Power consumption: 500 W (Typical)
570 W (Max.)

Noise level: (typical at 25°C/77°F) 30-33 dB(A)

Operating temperature: 10 to 45 °C (sea level)

Operational humidity: 20 to 80% (relative humidity)

BTU per hour: 1,707 BTU/h (Typical)
1,945 BTU/h (Max)



Dimensions: (WxLxH)

450 x 482 x 255 mm (excluding lens)
17.7 x 19.0 x 10.0 in. (excluding lens)

Weight: 21.5 kg / 47.4 lbs (excluding lens)

Shipping Dimensions:

464 x 679 x 773 mm

18.27 x 26.7 x 30.4 in

Shipping weight: TBC

Storage temperature: -20 to 60 °C

Storage humidity: 10 to 90% (relative humidity)

Certifications: CE, FCC Class A and cCSAus

Warranty: Limited 3 years parts and labor
Extendable up to 5 years
